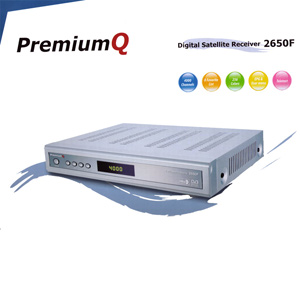

PremiumQ 2650F |
|
PremiumQ 2650F
GENERAL FEATURES
1 4,000 Programmable Channels Memory
2 8 Favorite Lists with 128 Channels in each list
3 8 Events ON/OFF Timer(for VCR recording)
4 Editor for Channel,TP and Favorite List
5 Dolby Digital Output Supported by Optical connector
6 SCPC/MCPC receivable from C/KU-band Satellite
7 LNB Loop-through function
8 LNB Power Overload protection
9 LNB Tone Switch 22KHz
10 DiSEqC 1.2 to control multi LNB
11 UHF modulator (PAL B/G/I)
12 1 x SCART (TV, VCR) connector
13 3 x RCA cinch for Video and Audio L/R
14 1 x RCA cinch for 0/12V
16 Software download via serial cable (RS-232C)
17 First Time Installation Menu (Welcome Menu)
18 EPG for Present,Following, Day and more
19 Subtitling and Multi Audio Track supported
20 Toggle between Previous and Current service
21 Automatic,Manual and Advanced Channel Search
22 Parental Control Supported
23 Easy to select List on Banner and any Channel list
24 Elegant Graphic 256 Color User Interface
25 Standard and Fine A/V Quality
26 Picture in Graphic on EPG and etc.
27 Multilanguage for On Screen Display
28 4:3, 16:9 with letter box and Pan & Scan
TECHNICAL SPECIFICATION
Transmission Standard
DVB, MPEG2
LNB/Tuner input
Connector 2 X F-Type
(Loop Trough)
Input frequency 950~2150MHz
Max Current 400mA Max
Supply Voltage 13V/18V
DiSEqC 1.0/1.2
RF Impedance 75 ohm
Demodulator
QPSK
Symbol rate 2~45Msym/s
SCPC and MCPC
Video Decoder
MPEC-2 Main Profile / Main Level
Data rates Up to 15Mbit/s
Video formats 4:3(letter box)
16:9
Pan & Scan
Audio Decoder
MPEC-2 Layer 1&2
System Resource
Processor 32Bits (ST20)
RAM 8Mbytes
Flash ROM 2Mbytes
Resolution 720 x 576
OSD 256 Colors
RF Modulator
Output Channel 21 ~69(PAL B/G/I)
Output Signal PAL B/G,D/K.,I
In/Output Connectors IEC169-2
Male/Female
Preset Channel 43
TV SCART
RGB, CVBS, Audio
VCR SCART
CVBS, Audio
Video Output
1 RCA/Cinch
Audio Output
2 RCA/Cinch connectors
0/12V Output
1 RCA/Cinch connector
Digital Audio Output
1 Optical connector
Serial Data
9Pin D-sub RS232C signal
Baud rates : 115.2Kbaud max
Conditional access system
Twin PCMCIA interface for a Common Interface CA module (DVB Standard)
Remote Control
Type NEC
Operating distance 10 meters
Batteries 2 x 1.5V AAA
Front Panel
4 digits 7 segment display
3 buttons on front panel
2 PCMCIA slots with removal buttons
IR Sensor
General Data
Operating Temperature 10° to 45°
Storage Temperature 40° to +70°
Supply Voltage 90~250VAC
50/60 Hz
Power Consumption Max.25 Watts
At 400mA LNB Load
Power Consumption in
Stand-by 6 Watts
Dimension (WxDxH) 340x240mmx60mm
Weight 1.87Kg
|
|
|
